The heavy machinery industry relies on robust engineering to perform demanding tasks in construction, agriculture, and mining. At the heart of these machines lies a critical assembly that dictates mobility, stability, and overall operational efficiency. Understanding the structural integrity of heavy equipment begins with a deep dive into the base components that support the entire weight of the machine while navigating diverse terrains.
An equipment’s undercarriage is the foundational framework located beneath the main body of a tracked or wheeled vehicle, consisting of a complex system of tracks, rollers, idlers, sprockets, and frames that support the machine's weight and facilitate movement.
Maintaining a high-performance undercarriage is essential for maximizing the lifespan of heavy machinery. This article will explore the intricate components of these systems, focusing on modern solutions like the Rubber Tracks Undercarriage, and provide comprehensive insights into maintenance strategies and professional services required to keep your fleet operational.
Section | Summary |
What Does Undercarriage Mean? | Defines the undercarriage as the structural base of heavy machinery and explains the specific components like track chains, rollers, and shoes. |
The Mechanics of Rubber Tracks Undercarriage | A detailed look at how rubber-based systems offer superior traction and surface protection compared to traditional steel. |
Undercarriage Maintenance and Repair | Covers essential diagnostic steps, wear patterns, and the critical importance of maintaining proper tension in track systems. |
Undercarriage Services | Outlines the professional support available for fleet managers, including parts replacement and technical consultations. |
The term undercarriage refers to the entire supporting structure beneath a vehicle or heavy machine, encompassing the tracks, wheels, suspension, and frames that allow for locomotion and weight distribution across various ground surfaces.
In the realm of B2B industrial equipment, the undercarriage is arguably the most hard-working part of any crawler-type machine. It is not merely a "base" but a dynamic system of moving parts that must synchronize perfectly to move several tons of steel and payload. For machines like excavators, bulldozers, and loaders, the undercarriage accounts for a significant portion of the initial purchase price and nearly half of all lifetime maintenance costs. Therefore, understanding its meaning involves recognizing it as the primary interface between the machine and the environment.

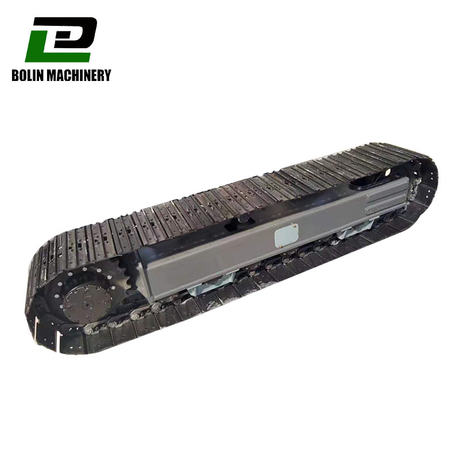

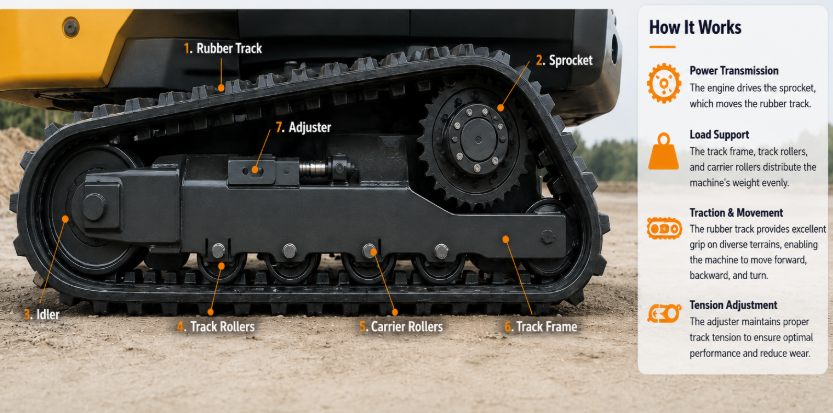

The structural components of a standard undercarriage include the track frame, which acts as the backbone, and the drive sprockets that transfer power from the final drive to the tracks. Between these, you find track rollers and idlers that guide the track chain and ensure even weight distribution. Without a functioning undercarriage, the machine’s engine and hydraulic systems are rendered useless, as there is no way to translate power into productive movement.
Furthermore, the design of the undercarriage determines the machine's ground pressure. In sectors like landscaping or urban construction, a Rubber Tracks Undercarriage is often preferred because it distributes weight more effectively than steel, preventing damage to finished surfaces like asphalt or turf. This adaptability is what makes the modern undercarriage a marvel of mechanical engineering.
Track Chains and Shoes: The primary contact point with the ground, providing traction.
Rollers (Bottom and Top): Support the weight of the machine and guide the track.
Idlers: Large wheels that guide the track and help maintain proper tension.
Sprockets: Toothed wheels that engage the track links to drive the machine forward or backward.
A Rubber Tracks Undercarriage is a specialized propulsion system that utilizes high-strength, steel-cord reinforced rubber belts instead of traditional steel links to provide smoother operation, lower noise levels, and reduced ground disturbance.
The shift toward rubber-based systems in the B2B sector has been driven by the need for versatility. While steel tracks are unmatched in extreme rock or heavy demolition environments, rubber tracks have become the standard for compact track loaders and mini-excavators. The internal structure of these tracks typically features continuous wound steel cables that provide the tensile strength needed to handle heavy loads without stretching or snapping. Utilizing a high-quality Rubber Track Electric Hydraulic Crawler Track Assembly ensures that the machine remains agile even in tight job sites.
Performance-wise, the Rubber Tracks Undercarriage offers a distinct advantage in operator comfort. Because rubber absorbs vibration much better than steel, it reduces the physical strain on the operator during long shifts. This vibration dampening also protects other internal components of the machine, such as the engine mounts and hydraulic fittings, from premature wear caused by constant jarring.
From a cost perspective, choosing the right track material is vital. For businesses operating on sensitive terrain, the reduced "scarring" of the ground can save thousands in restoration costs. To achieve maximum efficiency, one must ensure the assembly is high-grade. You can find specialized solutions such as a Rubber Track Electric Hydraulic Crawler Track Assembly to meet these specific industrial requirements.
Surface Protection: Ideal for work on pavements, sidewalks, and manicured lawns.
Operator Comfort: Significantly lower noise and vibration levels during travel.
High Speed: Allows for faster travel speeds between different areas of a job site.
Traction: Excellent grip on wet or slippery surfaces where steel might slide.
Undercarriage maintenance and repair involve a systematic process of cleaning, inspecting, and adjusting the various components of the track system to prevent premature wear and ensure the machine operates safely and efficiently.
The environment where heavy machinery operates is often filled with abrasive materials like mud, sand, and rocks. If these materials are allowed to build up, they can act like sandpaper, grinding down the rollers and sprockets. Regular cleaning is the first line of defense. A thorough daily wash-down prevents debris from hardening, which can otherwise cause the Rubber Tracks Undercarriage to seize or jump the sprocket.
Wear is inevitable, but it can be managed. One of the most critical aspects of maintenance is track tension. Tracks that are too loose will de-track, causing significant damage and downtime. Conversely, tracks that are too tight create excessive friction, leading to heat buildup and power loss. To avoid these issues, refer to a how tight should rubber excavator tracks be guide to ensure your equipment is set up according to manufacturer specifications. Proper tensioning is the easiest way to extend the life of your expensive components.
Repair cycles usually involve "turning" pins and bushings or replacing worn rollers. Because the undercarriage works as a system, a single worn part can quickly degrade the others. For instance, a seized roller will cause the track chain to slide over it rather than roll, leading to flat spots on the roller and accelerated wear on the track links. By following a complete guide to excavator track tension, operators can proactively catch these issues before they lead to catastrophic failure.
Component | Action Required | Frequency |
Track Tension | Check for sag and adjust as per manual | Weekly |
Rollers & Idlers | Inspect for leaks and flat spots | Daily |
Track Shoes/Belts | Look for cracks, bent shoes, or deep cuts | Daily |
Cleaning | Remove mud and debris buildup | End of Shift |
Bolts & Nuts | Check for loose mounting hardware | Monthly |
Undercarriage services encompass professional technical support, including ultrasonic wear measurement, part replacement, custom assembly manufacturing, and fleet-wide health audits provided by specialized engineers.
For large-scale operations, managing undercarriage health goes beyond simple daily checks. Professional services utilize advanced diagnostics to predict exactly when a component will fail. By using ultrasonic tools to measure the thickness of metal parts, technicians can calculate the remaining life of the Rubber Tracks Undercarriage and schedule repairs during planned downtime rather than waiting for an expensive on-site breakdown.
Customization is another key pillar of undercarriage services. Depending on the specific application—whether it's an amphibious vehicle or a high-torque drilling rig—standard tracks may not suffice. Specialized providers can build a custom Crawler Track Assembly tailored to the weight and torque requirements of a unique machine. This level of service ensures that the undercarriage is perfectly matched to the machine's duty cycle.
Investing in professional services also includes training for operators. Many undercarriage issues stem from poor driving habits, such as excessive reversing or constant turning in one direction. A service provider can audit these behaviors and provide guidance on how to maintain the system, including a guide for proper track adjustment. Ultimately, professional service is about optimizing the "cost per hour" of the machine.
Wear Analysis: Detailed reporting on component life using precision measurement tools.
Custom Manufacturing: Designing specific track frames and assemblies for unique industrial needs.
On-site Repair: Rapid replacement of tracks or rollers directly at the construction site.
Tension Optimization: Professional calibration using a comprehensive track tensioning guide to prevent mechanical strain.
The undercarriage is the unsung hero of the heavy equipment world. As we have explored, it is a sophisticated system that requires careful selection, diligent maintenance, and professional oversight. Whether you are utilizing a traditional steel setup or a modern Rubber Tracks Undercarriage, the principles remains the same: performance is dictated by the quality of the components and the precision of their calibration.
By prioritizing regular cleaning, monitoring wear patterns, and ensuring proper tension through expert resources, businesses can significantly reduce their operational costs. The undercarriage represents a major investment, but with the right knowledge and a proactive approach to repair and service, it can provide the reliable foundation your equipment needs to tackle the toughest jobs on the planet. For those looking to upgrade or replace their current systems, focusing on high-quality assemblies and adhering to manufacturer guidelines is the most effective path to long-term success.
