Are your excavator tracks too tight or loose? Maintaining the correct rubber track tension is vital to the longevity and efficiency of your machinery. Incorrect tension can cause excessive wear, instability, and even lead to fuel wastage. In this guide, you will learn how to measure, adjust, and maintain your rubber tracks for safe and efficient operation.
Rubber track tension refers to how tightly the track sits on the undercarriage of your machinery. The ideal tension balances flexibility and snugness, ensuring that the track does not slip while maintaining smooth movement. The right tension prevents the track from loosening too much or becoming too tight, which could affect the machine's overall functionality. Proper tension ensures the machine moves effortlessly, reducing unnecessary strain on the undercarriage components.
Maintaining proper tension is critical for several reasons:
Reduces Wear on Rollers, Idlers, and Sprockets: If your tracks are too loose or too tight, they cause extra stress on the moving parts. Loose tracks can lead to excessive wear and premature failure of the rollers and sprockets. Tight tracks put additional strain on the entire undercarriage, accelerating the wear of critical components.
Improves Machine Stability and Fuel Efficiency: Correct tension ensures the machine moves smoothly, which improves stability, reduces vibrations, and enhances fuel efficiency. Properly tensioned tracks will allow the machine to work more efficiently and consume less fuel by reducing unnecessary friction.
Minimizes Vibrations and Strain on the Drivetrain: When the tension is correct, vibrations during operation are minimized, and the drivetrain does not experience unnecessary strain. This helps to prevent damage to the drive system and prolongs the lifespan of the entire machine.
In short, maintaining the correct rubber track tension is essential not only for the short-term operation of the machine but also for its long-term health.
Incorrect track tension can lead to several issues, both in the short term and long term. Below are the potential risks for both loose and tight tracks:
| Condition | Risks | Symptoms |
|---|---|---|
| Loose Tracks | Slippage, derailment, uneven wear | Track sag, jumping during drive |
| Tight Tracks | Excess pressure on idlers and rollers | Stiff movement, noise, vibration |
| Both | Reduced efficiency and higher fuel costs | Frequent downtime |
Regularly inspecting track tension and addressing issues promptly can prevent costly undercarriage repairs and downtime, ensuring your machine operates efficiently.
Before adjusting track tension, ensure that the machine is properly prepared:
Position the Machine on Level Ground: Ensure the machine is parked on a flat, level surface to obtain accurate tension readings. Measuring on uneven ground can lead to incorrect adjustments.
Raise the Tracks Using the Boom and Bucket for Clearance: Lift the tracks to provide sufficient clearance for inspection and measurement.
Engage the Parking Brake and Power Off the Engine: Safety is essential, so make sure the machine is powered off and the parking brake is engaged before proceeding with any work.
Debris such as stones, mud, or dirt can obstruct accurate tension measurements. Before measuring, carefully check between the track and the sprocket for any debris and remove it. This ensures that the measurement is as precise as possible.
To determine if the track tension is correct, locate the third roller from the rear and measure the distance from the bottom of the roller to the top of the track. This measurement helps assess the amount of track sag, which is a good indicator of the current tension.
Compare Measurements to Your Operator Manual for Ideal Sag: Your operator manual will provide specific measurements for ideal track sag based on the machine model.
Slight Sag Indicates Proper Tension: A small amount of sag is acceptable and actually reduces stress on the rubber track, ensuring smoother operation.
Measuring on Uneven Ground: Always ensure that the machine is on level ground before taking measurements to avoid skewed results.
Ignoring Debris Between Track and Sprocket: Even small particles of debris can affect the accuracy of your measurement. Make sure to clear the track thoroughly before measuring.
Adjusting Without Referencing Manufacturer Specs: Always refer to the machine's manual to ensure the track tension is adjusted within the recommended limits. Failure to do so could cause damage to the undercarriage.
Before adjusting the tension, ensure the following safety steps are taken:
Power Off and Disengage Hydraulic Pressure: Turn off the engine and disengage any hydraulic pressure to avoid accidental movement of the machine.
Ensure the Work Area Is Flat and Free of Obstacles: A clear, flat surface is crucial to perform tension adjustments accurately and safely.
Use Proper Protective Equipment: Always wear the appropriate safety gear, such as gloves and safety glasses, when working with heavy machinery.
Remove the Undercarriage Cover Plate: To access the track adjuster, you may need to remove the undercarriage cover plate. This will give you access to the grease fitting and adjuster valve.
Locate the Grease Fitting and Track Adjuster Valve: These components are critical for adjusting track tension. Ensure that they are clean and free of debris.
Connect a Grease Gun to the Fitting: Attach the grease gun to the grease fitting located on the track adjuster.
Gradually Add Grease Until Track Sag Reaches Recommended Levels: Slowly pump grease into the fitting. The track will tighten as grease is added, and the sag should be adjusted to the recommended level.
Turn the Adjuster Valve Counter-Clockwise: To loosen the track, turn the adjuster valve counter-clockwise. This will release grease from the track adjuster, allowing the track to loosen.
Release Grease Slowly Until the Desired Sag Is Achieved: Gradually release grease until the correct amount of track sag is reached.
After adjusting the track tension:
Lower the Machine: Carefully lower the machine back to the ground after making adjustments.
Move It a Few Meters to Test Response: Drive the machine for a short distance to see if the tracks perform as expected.
Recheck Sag and Fine-Tune if Needed: After testing, measure the sag again to ensure it meets the ideal tension. Make any necessary adjustments to perfect the tension.
Tip: Always make small adjustments to avoid over-tightening or loosening the track too much in a single step.
Visible Sag Between Rollers: If the tracks appear to be sagging noticeably between rollers, it may indicate that the tension is too loose.
Track Slips or Jumps During Operation: Loose tracks may slip or jump while the machine is in operation.
Uneven Wear on Drive Sprockets: Uneven wear on the sprockets often signals that the tracks are too loose.
Stiff or Jerky Movement: Tight tracks will make it difficult for the machine to move smoothly. You may notice jerky movements or difficulty in turning.
Noise or Vibrations in the Cabin: Excessive tightness can cause noise or vibrations that can be felt in the operator cabin.
Higher Fuel Consumption: If the tracks are too tight, the machine will consume more fuel due to increased friction.
There are several factors that can affect track tension over time, including:
Mud, Debris, or Water Exposure: Tracks operating in muddy or wet conditions may experience quicker wear and require more frequent adjustments.
Seasonal Temperature Fluctuations: Extreme temperatures can cause tracks to expand or contract, affecting tension.
Frequent Terrain Changes: Operating on rough or uneven terrain can cause the track tension to fluctuate.
Check Every 50–100 Operating Hours: Regular inspections are essential to ensure the proper functioning of your rubber tracks.
Daily Inspections Recommended in Harsh Environments: In environments where the machine operates under extreme conditions, such as construction sites or agricultural fields, daily inspections are recommended.
Seasonal and Environmental Factors May Require More Frequent Checks: Keep in mind that changing weather conditions and rough terrain can affect the track tension, so more frequent checks may be necessary.

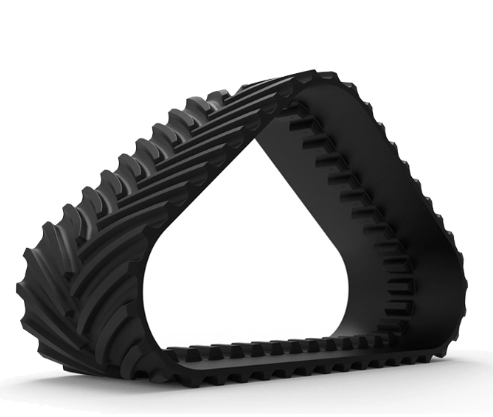

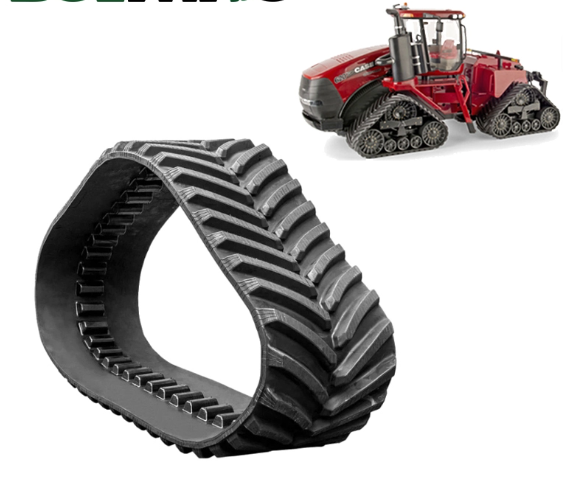

High-quality rubber tracks are designed to last longer and maintain their tension more effectively. Choosing durable tracks helps reduce the frequency of adjustments, saving both time and money in the long run.
Always use the track size and type recommended by the manufacturer. Using the wrong tracks can accelerate wear and reduce overall performance.
Many online tools and parts finders can simplify the process of selecting the correct tracks. These tools ensure a proper fit, which helps prevent tension issues and minimizes downtime.
If your machine is frequently operating in tough conditions, such as muddy or rough terrain, upgrading to heavy-duty tracks or those designed for specific conditions can improve durability and maintain consistent tension.
Investing in high-quality tracks not only lowers maintenance costs but also enhances overall machine performance.
Hot Weather: Tracks may expand in hot weather, which could require tightening.
Cold Weather: Tracks contract in cold weather and may require loosening to prevent over-tightening.
Remove debris regularly from the tracks and sprockets. Greasing the track adjuster is also essential for smooth operation and tension adjustments.
Regularly inspect for cracks, wire strands, and uneven wear. Frequent inspections of rollers and sprockets will help identify any potential issues early.
Replace worn-out tracks before they fail. Doing so will prevent unexpected downtime and costly repairs.
Maintaining the correct rubber track tension is crucial for the efficiency, stability, and longevity of your machinery. Regular checks and minor adjustments can prevent costly repairs and downtime. By choosing quality tracks and performing routine maintenance, you can ensure optimal performance and reduce the overall operating costs. BOLTRAC offers durable, high-performance rubber tracks that help maximize your machine's productivity, reduce wear, and extend its lifespan. Investing in BOLTRAC products ensures your equipment operates efficiently and reliably for years to come.
A: Rubber track tension is the proper tightness of the track on an excavator. Correct tension prevents slippage and reduces wear.
A: Check for sag or stiffness. Too tight strains components; too loose may slip. Use measurements as a guide.
A: Add or release grease at the track adjuster valve to reach proper sag. Test and retest after each adjustment.
