How to Tighten an Excavator Undercarriage

To tighten an excavator undercarriage, you must locate the track adjustment valve, typically found behind a small service panel on the track frame, and pump high-quality chassis grease into the cylinder using a grease gun. This action extends the tensioner piston, pushing the idler forward to remove slack from the Rubber Tracks Undercarriage until the sag measurement meets the manufacturer's specific technical requirements.

Maintaining the correct tension is not merely a matter of mechanical vanity; it prevents de-tracking, reduces power loss, and minimizes the accelerated wear of expensive components like rollers and sprockets. The following guide provides a comprehensive breakdown of the tools, techniques, and professional standards required to master undercarriage tensioning.

How to Tighten Excavator Tracks

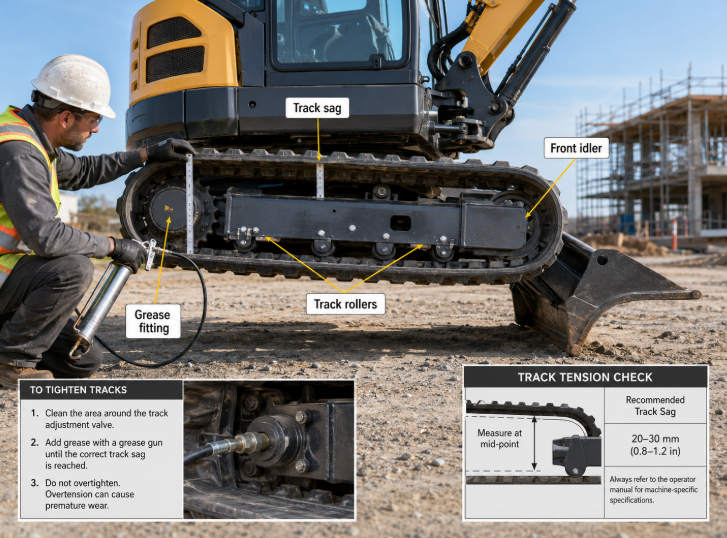

Tightening excavator tracks involves lifting the machine side to measure the sag between the bottom of the track frame and the top of the track belt, followed by injecting grease into the adjustment cylinder to push the idler forward.

The process begins with safety and precision. Before attempting any adjustment on a Rubber Tracks Undercarriage, the machine must be parked on a level surface. The operator should use the boom and blade to lift one side of the track assembly off the ground. This "free-hanging" state allows gravity to reveal the true slack in the system. Measuring the distance from the middle track roller to the top of the track shoe provides the "sag" value. If this value exceeds the manufacturer’s limit—often ranging between 20mm to 50mm depending on the model—adjustment is mandatory.

Once the sag is confirmed to be out of spec, the operator must clean the area around the track adjustment valve. This valve is a hydraulic grease fitting that connects directly to a heavy-duty tensioning spring and piston. By using a manual or battery-powered grease gun, grease is pumped into the chamber. The hydraulic pressure generated by the grease forces the piston out, which in turn moves the front idler away from the drive sprocket. This extension increases the circumference of the track loop, effectively tightening the assembly.

Understanding the environment is crucial for professional SEO-optimized maintenance. If you are working in soft, muddy conditions, a slightly looser track is often preferred to allow debris to pass through without over-stressing the motor. Conversely, on hard rock or jagged surfaces, a tighter setting prevents the track from "jumping" off the sprocket. For a more detailed look at specific measurements, you might consult a How Tight Should Rubber Excavator Tracks Be: A Complete Guide to ensure your machine is calibrated perfectly for your specific job site.

Key Factors Influencing Track Tension

1. Soil Type: Mud requires more slack to prevent "packing" (where dirt builds up between the track and rollers).

2. Component Wear: Worn bushings and sprockets can make a track appear loose even if the tensioner is fully extended.

3. Operational Direction: Frequent high-speed travel in reverse increases the load on the tensioner and idler.

How Do You Grease Excavator Tracks?

Greasing excavator tracks refers to the application of grease into the internal hydraulic tensioner cylinder to regulate track tightness, rather than lubricating the external rubber or steel links which generally do not require surface grease.

The internal mechanism of a Rubber Tracks Undercarriage relies on a specialized grease-filled cylinder. Unlike other pivot points on the machine that require lubrication to reduce friction, the track adjuster uses grease as a hydraulic fluid. When you attach a grease gun to the Zerk fitting located on the side of the crawler frame, you are adding volume to a sealed chamber. This volume expansion provides the mechanical force necessary to hold the heavy idler assembly in place against the massive recoil spring.

The quality of the grease used is paramount. Most manufacturers recommend a high-pressure lithium-based grease that can withstand the environmental temperatures and the extreme pressures found within the tensioner. Using the wrong type of grease can lead to seal failure within the cylinder, causing the track to lose tension rapidly during operation. This is especially critical for a Rubber Track Electric Hydraulic Crawler Track Assembly, where precision engineering requires consistent hydraulic pressure to maintain the alignment of the electric drive components.

Furthermore, it is essential to understand the "bleeding" or loosening process. If a track is overtightened, it can lead to massive power loss and premature bearing failure. To loosen the track, the operator must carefully unscrew the grease fitting (usually only one full turn) to allow grease to escape. This must be done with extreme caution, as the grease is under high pressure and can be ejected with enough force to cause injury. Always ensure the discharge hole is pointed away from your body and that you follow the steps outlined in a comprehensive track tensioning manual.

Comparison of Manual vs. Automatic Tensioning Systems

Professional Excavator Track Adjustment and Replacement

Professional track management involves a holistic approach that combines regular tension adjustments, wear-pattern analysis, and the timely replacement of the entire track assembly once the internal steel cords or external tread patterns are compromised.

In the world of B2B industrial equipment, downtime is the enemy of profitability. A professional operator does not just tighten a track; they inspect the entire undercarriage for signs of uneven wear. On a Rubber Tracks Undercarriage, this means looking for "chunking" in the rubber, exposed steel cables, or excessive wear on the drive lugs. If the track consistently loses tension, it may indicate a leaking seal in the grease cylinder or a snapped recoil spring, both of which require immediate professional intervention to prevent a catastrophic failure in the field.

When adjustment is no longer sufficient, choosing a high-quality replacement is vital. Modern construction demands components that can handle high torque and varied loads. For specialized projects, such as those involving autonomous or remote-controlled units, upgrading to a Rubber Track Electric Hydraulic Crawler Track Assembly can provide better traction control and reduced ground pressure. These assemblies are designed to be "plug-and-play" for many industrial applications, ensuring that the interface between the hydraulic system and the tracks is optimized for maximum efficiency.

Advanced SEO data suggests that users often look for the "cost per hour" of their undercarriage. To optimize this metric, professionals implement a rotation strategy and ensure that operators avoid unnecessary high-speed travel or sharp turns on abrasive surfaces. Keeping a detailed log of track sag measurements helps in predicting when a track will reach its end-of-life. By referring to a guide on track tightness, managers can train their staff to identify the "sweet spot" of tension that balances performance with component protection.

Steps for Professional Track Replacement

1. Support the Machine: Use heavy-duty jack stands or the machine's own hydraulics to safely elevate the frame.

2. Release All Tension: Completely remove the grease valve to allow the idler to retract fully.

3. Remove the Old Track: Use a pry bar or forklift to slide the old rubber belt off the idler and then the sprocket.

4. Inspect Rollers and Sprockets: Always check for flat spots on rollers or "shark-finning" on sprocket teeth before installing new tracks.

5. Install and Tension: Slide the new belt on, reinstall the valve, and grease to the recommended technical sag specifications.

Conclusion

Mastering the art of tightening an excavator undercarriage is an essential skill that directly impacts the bottom line of any construction or mining operation. By maintaining a strict schedule for measuring track sag and ensuring the grease-based tensioning system is functioning correctly, you can extend the life of your Rubber Tracks Undercarriage significantly. Remember that tensioning is not a "one-size-fits-all" task; it requires adjustments based on ground conditions, machine load, and the specific age of the components.

Whether you are performing a simple field adjustment or a complete overhaul using a high-performance crawler track assembly, precision is key. A track that is too tight will waste fuel and snap components, while a track that is too loose will result in downtime due to de-tracking. By following the professional workflows outlined in this guide and staying informed through expert resources, you ensure your machinery remains a reliable asset on every job site. Regular inspections, quality lubrication, and an understanding of the mechanical limits of your equipment are the best defenses against unexpected failures and costly repairs.
