A rubber track undercarriage system is a mechanical assembly consisting of a continuous rubber belt reinforced with internal steel cords and cores, supported by a series of rollers, idlers, and sprockets. This system is engineered to deliver superior flotation, reduced vibration, and high traction in environments where wheels would fail, such as soft mud, loose sand, or sensitive turf.
In this comprehensive guide, we will delve deep into the structural components, maintenance protocols, and selection criteria for high-quality rubber tracks. We will explore how different tread patterns affect performance and provide actionable insights on when to replace worn components to prevent catastrophic failure. By mastering the nuances of the Rubber Tracks Undercarriage, fleet managers and operators can ensure their machinery remains productive and cost-effective throughout its service life.
Pros of Rubber Tracks
Rubber Track Equipment Maintenance Tips
What Are the Signs I Need to Replace My Rubber Tracks?
Why Is It Important to Buy from a Trusted Rubber Track Supplier, Rather Than an Aftermarket Supplier?
Bolin Can Provide You With the Best in Rubber Tracks for Your Equipment
Rubber tracks offer a multitude of benefits over steel tracks and tires, primarily focused on low ground pressure, high flotation, and significantly improved operator comfort due to reduced vibration and noise during operation.
The primary advantage of a Rubber Tracks Undercarriage is its ability to operate on sensitive surfaces without causing the extensive damage typical of steel tracks. Because the weight of the machine is spread across a wide, flexible footprint, these systems excel in landscaping and urban construction where pavement or manicured lawns must remain intact. This high flotation allows machines to "float" over soft mud or swampy ground where wheeled vehicles would quickly become bogged down, ensuring that projects can continue even in adverse weather conditions.
Furthermore, rubber tracks provide a smoother ride for the operator. The natural elasticity of the rubber acts as a secondary suspension system, absorbing shocks from uneven terrain. This leads to less fatigue for the driver and less mechanical stress on the machine’s internal components. In terms of versatility, rubber-tracked machines can transition seamlessly from off-road dirt work to paved roads without the need for protective mats, saving time and labor costs on the job site.

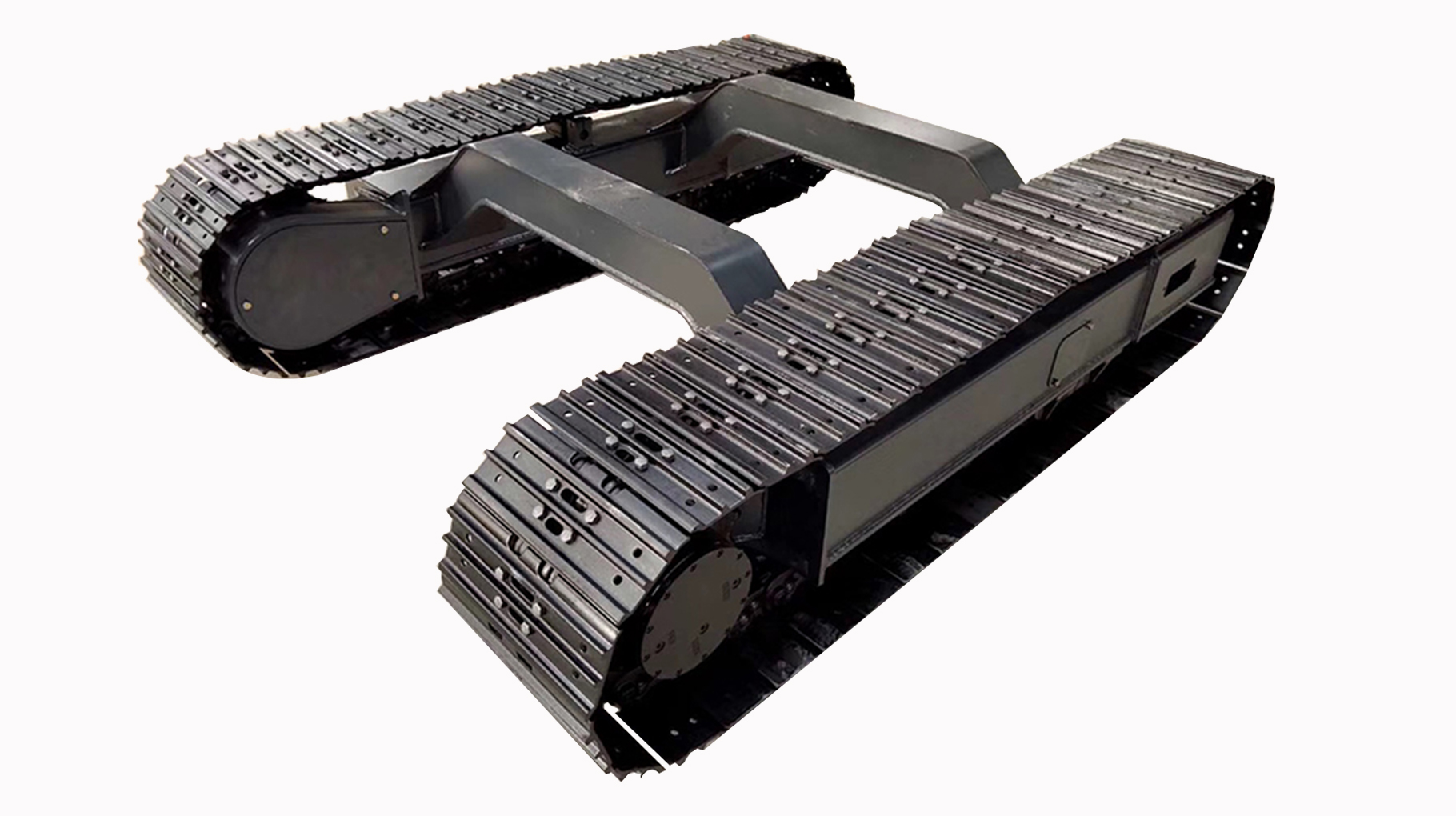

The traction provided by modern tread designs is another critical factor. Depending on the application, tracks can be equipped with various lug patterns—such as C-lugs, block patterns, or zig-zag patterns—to optimize grip in specific environments. For instance, when utilizing a high-performance crawler track assembly, the integration of advanced rubber compounds and internal steel reinforcements ensures that the machine maintains maximum pushing power and stability even on steep inclines or slippery surfaces.
Feature | Rubber Tracks | Steel Tracks | Pneumatic Tires |
Ground Pressure | Extremely Low | Medium | High |
Surface Damage | Minimal | Significant | Moderate |
Operator Comfort | High (Smooth) | Low (Vibrancy) | Medium |
Speed | Medium-High | Low | Very High |
Terrain Type | Mud, Turf, Pavement | Rock, Demolition | Hard Soil, Road |
Proper maintenance of a rubber track undercarriage requires a combination of regular cleaning, daily visual inspections, and, most importantly, maintaining the correct track tension to prevent premature wear or de-tracking.
One of the most critical aspects of undercarriage health is tension management. A track that is too tight will put excessive strain on the rollers and idlers, leading to accelerated wear of the bearings and the track's internal steel cords. Conversely, a track that is too loose is prone to "de-tracking," which can damage the track edges and the machine's drive sprocket. Operators should regularly refer to a complete guide on excavator track tensioning to ensure their specific model is adjusted within the manufacturer's recommended parameters.
Cleaning is equally vital. Debris such as rocks, mud, and frozen soil can pack into the undercarriage components, acting as an abrasive that grinds down the track lugs and rollers. In cold climates, wet mud can freeze overnight, potentially seizing the rollers or causing the track to snap upon start-up. A daily routine of hosing down the undercarriage and removing large debris with a spade will significantly extend the life of the Rubber Tracks Undercarriage and prevent costly downtime.
Beyond cleaning and tensioning, operators should perform a "walk-around" inspection before every shift. This involves checking for oil leaks from the rollers or final drives, looking for missing bolts, and examining the drive sprocket for "shark-finning" (thinning and sharpening of the teeth). A well-maintained system ensures that the durable track assembly components function as a cohesive unit, preserving the integrity of the rubber belt and the mechanical hardware it relies on.

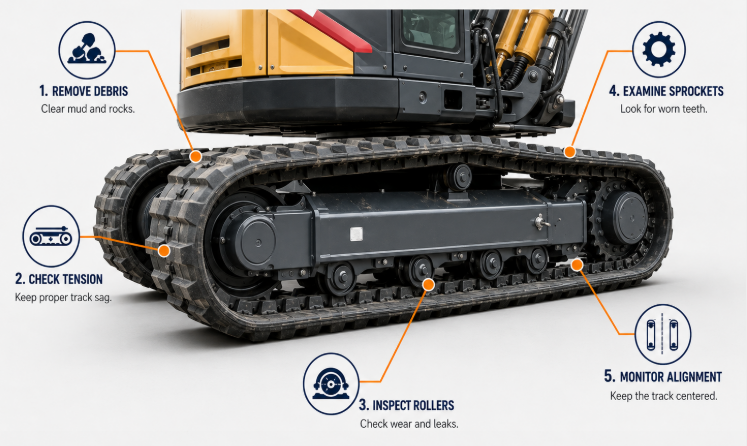

Remove Debris: Clear out mud, stones, and scrap metal from the track frame.
Check Tension: Measure the sag and adjust the grease cylinder if necessary.
Inspect Rollers: Ensure all rollers rotate freely and show no signs of leaking seals.
Examine Sprockets: Look for excessive wear or broken teeth that could snag the track.
Monitor Alignment: Verify that the track is centered on the idlers and rollers.
The most common signs that rubber tracks need replacement include visible steel cords, deep cracks (dry rotting), significant lug wear that reduces traction, and a consistent inability to maintain proper tension.
The appearance of internal steel cords is an immediate red flag. These cords provide the structural "skeleton" of the track; once they are exposed to the elements, they can rust and snap, leading to a sudden and total failure of the track. If you notice any metal wires poking through the rubber, the track's structural integrity is compromised. Additionally, deep cracks reaching the core of the rubber, often caused by UV exposure or chemical contamination, indicate that the rubber has become brittle and is likely to chunk off during operation.
Tread depth is another major indicator. Just like automotive tires, rubber tracks have lugs that provide the necessary grip for the Rubber Tracks Undercarriage to function. When these lugs are worn down to less than 20% of their original height, traction decreases, and the machine will begin to slip, increasing fuel consumption and cycle times. Furthermore, if you find yourself frequently adjusting the tensioner only to have the track go slack again within a few hours, the internal cords may have stretched beyond their elastic limit, necessitating a full replacement.
Lastly, pay attention to the drive lugs on the inside of the track. These are the rubber or metal protrusions that the sprocket engages with to move the machine. If these are rounded off, missing, or cracked, the sprocket may slip, causing jerky movements and further damaging the drive motor. Before a total breakdown occurs, it is wise to consult a detailed guide on rubber track replacement signs to help diagnose whether a simple adjustment or a full overhaul is required.
External Cracking: "Checking" or dry rot on the exterior surface.
Sprocket Slippage: The machine hesitates or makes a popping sound during travel.
Uneven Wear: One side of the track is significantly more worn than the other, indicating alignment issues.
Vibration: Unusual shaking or noise during high-speed travel.
Exposed Cords: Shiny metal visible in the valleys of the tread or on the edges.
Buying from a trusted supplier ensures that the rubber tracks are manufactured with high-grade synthetic and natural rubber blends and continuous steel cord technology, which offers far greater longevity than the "cut-and-splice" methods often used by cheap aftermarket manufacturers.
The quality of the raw materials is the biggest differentiator between a premium supplier and a generic aftermarket source. Trusted suppliers use a specific ratio of natural and synthetic rubber to ensure the track remains flexible in sub-zero temperatures while resisting abrasion in hot, rocky conditions. Cheap aftermarket tracks often use a higher percentage of recycled rubber or carbon black fillers, which leads to premature dry rotting and "chunking" where large pieces of the tread break off.
The internal construction of the Rubber Tracks Undercarriage is also vital. Premium tracks utilize a continuous winding of steel cords, meaning there is no weak "joint" or "splice" in the internal structure. Many low-cost aftermarket tracks are made by splicing two ends of a cord together, creating a weak point that is prone to snapping under high tension. By choosing a reputable source, you are investing in a product designed to handle the specific torque and load requirements of your heavy machinery.
Moreover, a trusted supplier provides technical support and precise fitment guarantees. Using an incorrectly sized track can cause excessive wear on your undercarriage rollers and drive motors. When you source from experts who understand the nuances of correct track fitment and tensioning, you receive a product that matches the OEM specifications of your machine perfectly. This reduces the risk of de-tracking and ensures that the power of your engine is efficiently transferred to the ground.
Bolin specializes in providing high-durability rubber tracks and undercarriage components that are engineered to withstand the most demanding industrial environments, ensuring maximum ROI for your fleet.
When it comes to the Rubber Tracks Undercarriage, one size does not fit all. Different applications require different rubber compounds and tread patterns. Whether you are looking for tracks for a mini-excavator, a heavy-duty crawler, or a specialized agricultural harvester, having a supplier that offers a wide range of customized solutions is essential. High-quality manufacturing processes ensure that every track produced meets rigorous quality control standards, providing peace of mind to operators who rely on their equipment for their livelihood.
The integration of advanced technology into track design has led to the development of components that last longer and perform better. For instance, specialized rubber track assemblies are designed to optimize the interaction between the rubber belt and the steel undercarriage hardware. This synergy reduces friction and heat buildup, which are the two primary enemies of rubber longevity. By focusing on the entire system rather than just the track itself, you can achieve a level of reliability that generic parts simply cannot match.
Finally, expert guidance is a hallmark of a superior provider. Choosing the right track involves more than just matching dimensions; it requires an understanding of soil conditions, duty cycles, and machine weight distribution. Following a professional maintenance and installation guide provided by industry experts ensures that your new tracks are installed correctly and maintained for peak performance. Investing in quality today prevents the expensive repairs of tomorrow, keeping your projects on schedule and your budget intact.
Continuous Steel Cord Technology: Eliminates the weak points found in spliced tracks.
Precision Forged Steel Links: Provides a solid foundation for the rubber to bond to.
Advanced Rubber Compounds: Resists cutting, tearing, and abrasion better than standard rubber.
OEM Compatibility: Guaranteed to fit your specific machine make and model without modification.
Warranty and Support: Backed by industry-leading protection and technical expertise.
