A track drive is a specialized mechanical propulsion system that combines a hydraulic or electric motor with a planetary gearbox to drive the continuous tracks of heavy machinery, ensuring high torque output and reliable mobility in extreme terrains.
The subsequent technical review provides an exhaustive look into the structural systems, operational parameters, and mechanical engineering principles governing advanced track drives. By examining component configurations, torque reduction ratios, maintenance procedures, and real world deployment strategies, this comprehensive document serves as an industrial benchmark for understanding high capacity undercarriage engineering. The following sections outline the precise technical criteria that enable these assemblies to consistently power heavy industrial crawler vehicles across any terrain worldwide.
Section | Summary |
What Is a Track Drive? | Defines the core mechanical architecture, component configuration, and essential reduction principles of track drive systems in modern heavy machinery. |
Key Features of the Track Drive | Details the manufacturing materials, structural integrity metrics, multi speed displacement options, and sealing technologies. |
Why Engineers Choose Premium Track Drives | Explains the direct operational benefits, including thermal efficiency, wear reduction, and structural load distribution advantages. |
Where Track Drives Are Used | Examines the wide array of heavy industry deployments, such as civil excavation, mining transport, drilling rigs, and custom industrial setups. |
A track drive is an integrated mechanical assembly comprising an internal motor and a high reduction planetary gearbox designed to rotate the drive sprocket of a crawler track system.
In terms of heavy machinery mechanics, the track drive functions as the absolute final point of gear reduction within the vehicle's powertrain. The primary engineering purpose of this assembly is to receive high velocity, low torque rotational power from a centralized hydraulic pump or an electric motor and transform it into low velocity, ultra high torque mechanical force. This massive mechanical force is directly delivered to the track sprocket teeth, which engage the continuous track chain or rubber track lugs to move the heavy machine forward or backward across highly resistant surfaces. Because the housing of the drive is bolted directly to the structural track frame, it serves as a load bearing element that must withstand immense external forces while continuously spinning the internal gear components.
To fully understand the sequence of power transformation inside these sophisticated industrial units, engineers rely on structured process mapping. The operational flow of power starts at the primary engine or battery system and moves through various stages of reduction before turning into raw linear motion on the ground. The table below outlines the step by step process of how mechanical energy moves through a modern, high torque Electric Hydraulic Crawler Track power drive assembly:
Process Stage | Component Involved | Functional Description and Power Transformation |
1. Energy Input | Primary Motor (Hydraulic Axial Piston or High Voltage AC Electric) | High speed, low torque energy is introduced into the input shaft of the drive assembly via pressurized fluid flow or electrical current. |
2. Primary Stage Reduction | Sun Gear and First Stage Planetary Carrier Assembly | The input shaft turns the first small sun gear, which transfers rotational force outward to multiple surrounding planet gears, initiating the first torque multiplication step. |
3. Secondary Stage Reduction | Intermediate Planetary Transmission Set | The rotational force is passed down to a second or third stage of larger planetary gears, further lowering the rotational speed while exponentially increasing output torque. |
4. Brake Modulation | Multi Plate Friction Brake (Spring Applied, Hydraulically Released) | Internal pilot pressure forces the friction plates apart to allow rotation; dropping pressure instantly engages the springs to lock the drive securely. |
5. Output Drive Transmission | External Rotating Hub and Drive Sprocket Splines | The final heavy duty planetary carrier spins the outer casing hub, which is rigidly bolted to the primary drive sprocket teeth. |
6. Linear Displacement | Continuous Crawler Track Belting or Track Shoe Chain | The sprocket teeth engage the drive lugs of the track, converting pure rotational torque into stable, high traction linear movement across the ground. |
The mechanical architecture of a premium drive relies heavily on a multi stage planetary design instead of a standard inline gearbox layout. Planetary gear trains distribute the heavy mechanical stresses across several gear teeth meshes simultaneously, allowing the unit to handle incredible torque loads within a highly compact housing footprint. This compact structure ensures that the entire drive fits neatly inside the narrow profile of the crawler chassis or directly within the center of the track sprocket, shielding the entire assembly from rocks, logs, and debris. High capacity tapered roller bearings are embedded at both ends of the rotating hub to absorb the massive radial and axial loads generated when a machine turns or works on uneven hillsides.

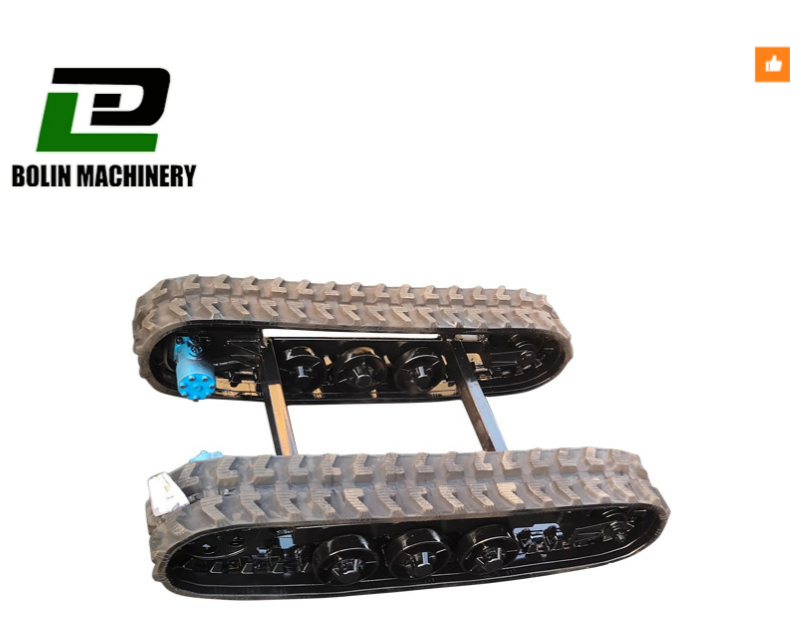

Furthermore, managing these power systems requires an intimate understanding of advanced automation and precise fluid control. When configured as an integrated Electric Hydraulic Crawler Track undercarriage, the track drive interfaces with electronic control units and proportional hydraulic valves to regulate fluid dynamics and torque delivery in real time. This precise integration enables operators to perform smooth counter rotation turns, adjust tracking speeds dynamically based on ground resistance, and maintain steady straight line travel on sloped ground. A spring applied, hydraulically released multi disc brake is built into the drive core to guarantee the crawler remains locked in place when stationary, ensuring safety during heavy lifting or excavating operations.
The primary features include an ultra compact planetary layout, dual speed capability, robust heavy duty load bearings, and advanced sealing systems designed for harsh field environments.
The structural reliability and performance of an industrial track drive are directly tied to the quality of its manufacturing materials and its overall structural design. Premium drive housings are forged from high tensile alloy steel that undergoes induction heat treatment to achieve exceptional surface hardness while retaining a shock absorbing, flexible inner core. This metallurgical composition prevents the outer housing or internal gear teeth from cracking when subjected to sudden impact forces. The ability to switch between high and low displacement modes provides versatile operational options, allowing equipment to adjust tracking parameters on the fly to meet changing site requirements.
To assist equipment designers and procurement managers in evaluating different drive sizes, the table below provides a detailed performance matrix across three major industrial model classifications:
Performance Metric | Light Duty Classification | Medium Duty Classification | Heavy Duty Industrial Classification |
Peak Output Torque Rating | Up to 15000 Nm | 15000 to 50000 Nm | 50000 to 250000 Nm |
Maximum Allowed Radial Load | 45 kN | 120 kN | Up to 450 kN |
Gear Reduction Ratio Ranges | 1:30 to 1:50 | 1:40 to 1:90 | 1:80 to 1:220 |
Standard Parking Brake Release Pressure | 15 Bar | 18 Bar | 22 Bar |
Compatible Track System Widths | 300 mm to 450 mm | 450 mm to 600 mm | 600 mm to 900 mm and above |
A standout design feature found in advanced track drives is the integration of dual displacement technology within the internal motor block. In low speed, high torque mode, the internal motor maximizes its fluid displacement or electrical field density to deliver the heavy tractive force needed for climbing steep slopes, dragging heavy payloads, or clearing dense mud. When the crawler needs to travel across flat, stable ground, the internal control valve changes to high speed, low torque mode. This reduces fluid flow demands, cuts down on fuel or power usage, and lowers cycle times when moving equipment across expansive job sites.
Long term reliability in tough outdoor environments depends heavily on advanced internal sealing systems. Premium drive units utilize specialized mechanical face seals, commonly known as lifetime floating seals, which use precision lapped metallic rings backed by heavy duty elastomeric O-rings to create an airtight internal chamber. This sealing arrangement prevents lubricating oil from leaking out while completely blocking external water, mud, slurry, and fine silica dust from reaching the internal gear teeth. For heavy equipment designs that require a complete undercarriage replacement, pairing a premium drive with an engineered Electric Hydraulic Crawler Track chassis ensures perfect structural alignment between the drive sprocket, track rollers, and track shoes, minimizing friction and uneven wear across all moving parts.
Engineers select these high performance track drives due to their exceptional mechanical efficiency, minimized maintenance overhead, precise controllability, and proven structural longevity.
In B2B industrial sourcing, total cost of ownership is the primary metric used to judge mechanical parts. Choosing a track drive engineered with optimized planetary gear placement ensures that internal friction losses are minimized, allowing a higher percentage of primary motor power to reach the ground as effective traction. This improved mechanical efficiency minimizes heat generation inside the gear oil chamber, reducing the cooling load on the vehicle's hydraulic system. This prevents fluid thinning and breakdown, directly extending the operational life of the hydraulic pumps, control valves, and internal dynamic seals.
To illustrate the lifecycle stages and maintenance workflows required to achieve long term structural reliability, engineers rely on a structured, step by step process. Managing a track drive system from initial integration through field service requires a rigorous approach to prevent unexpected breakdowns. The table below details the recommended lifecycle steps for maintaining a heavy duty drive within an integrated crawler assembly:
Lifecycle Phase | Required Engineering Action | Operational Value and Goal |
1. System Selection | Calculate precise peak torque requirements, gross vehicle weight ratings, and maximum radial track tension forces. | Ensures the selected gearbox is perfectly matched to the machine's work profile, preventing premature mechanical fatigue. |
2. Chassis Integration | Align the drive hub to the track frame and bolt the unit down using high strength fasteners tightened to exact torque specifications. | Eliminates structural flexing and misalignment between the drive sprocket teeth and the continuous track links during operation. |
3. Initial Calibration | Fill the gearbox housing with high grade extreme pressure gear oil and calibrate the parking brake release pilot pressure line. | Guarantees complete lubrication coverage and smooth brake disengagement before putting the machine under heavy load. |
4. Daily Fluid Inspections | Perform a quick visual inspection of the mechanical face seals to check for gear oil leaks behind the sprocket plate. | Catches minor seal wear early, preventing full oil loss and guarding against internal gear damage from dirt entry. |
5. Scheduled Flushing | Drain old gear oil, flush internal gear chambers to remove fine metallic wear particles, and refill with fresh fluid. | Maintains oil film strength and keeps the planetary gear teeth clean, extending the overall service life of the gearbox. |
The structural durability of these high performance units is further improved by using full complement needle bearings within the individual planetary gears. Unlike caged needle bearings, full complement setups pack the maximum number of needle rollers into the gear bore, increasing the bearing's load contact area. This design allows the gearbox to distribute intense shock loads evenly across the entire gear system, protecting the teeth from cracking during sudden impacts, such as hitting buried boulders or operating on rocky ground. A thick, cast steel outer housing provides a rigid shield that keeps internal shafts perfectly aligned, even under severe structural twisting.
Routine maintenance is made simple by the strategic placement of accessible oil fill, drain, and level plugs, allowing technicians to check fluid health quickly without taking apart the track frame. For engineering teams developing specialized industrial carriers or modular utility equipment, choosing a pre engineered Electric Hydraulic Crawler Track kit streamlines the overall development process. Sourcing a fully integrated undercarriage kit eliminates the complex engineering tasks of matching separate gearboxes, brakes, and motors, ensuring the entire drive system works perfectly together from day one.
Track drives are utilized across global heavy industries, including construction excavation, mining operations, agricultural transport, and specialized deep drilling setups.
The primary advantage of a tracked undercarriage is its ability to distribute heavy machine weights over a wide footprint, keeping ground bearing pressure remarkably low. Track drives provide the intense torque and continuous power needed to move these large contact areas through soft soils, thick clay, deep sand, and rocky terrains without stalling or slipping. Their adaptable mechanical layout allows them to be seamlessly integrated into a wide variety of industrial machinery designs, proving their worth across multiple demanding sectors.
In municipal infrastructure development, commercial construction, and highway repair projects, tracked excavators, demolition rigs, and asphalt milling machines count on high torque drive gearboxes to navigate tight job sites. The ability to perform counter rotation turns allows these large machines to spin in place within narrow spaces, making it easy to work safely near open trenches, existing building walls, and road barriers. The following breakdown lists the primary equipment types that rely on these heavy duty planetary track drives:
Heavy duty excavators, material handling cranes, and high reach demolition rigs require dependable track drives to safely position large equipment on steep slopes and uneven debris piles. The high static braking capacity built into these drives prevents the machine from slipping or rolling while operating heavy hydraulic attachments, such as concrete pulverizers, demolition shears, or large excavation buckets.
Horizontal directional drilling machines, deep water well rigs, and blast hole drills require smooth, steady movement to stay perfectly aligned with their drilling paths. High torque track drives provide the consistent, low vibration tracking force needed to move these heavy drilling towers across uncompacted soils, ensuring they remain perfectly stable during deep drilling operations.
Modern commercial farming equipment, including high capacity grain combines, sugar cane harvesters, and bulk lime spreaders, often uses tracked undercarriages to prevent severe soil compaction in fertile fields. Track drives allow these large agricultural machines to carry heavy payloads through muddy fields after heavy rains, ensuring harvesting schedules are met regardless of the weather.
Mobile rock crushers, screeners, and tracking material conveyors used in mining and aggregate processing facilities must be relocated frequently as the work area shifts. Heavy duty planetary track drives allow these massive processing plants to move independently around the site, avoiding the high costs and logistical challenges of using external transport trailers.
For highly customized industrial projects, such as specialized pile drivers, heavy duty shipyard transport platforms, and bridge section launchers, standard off the shelf undercarriage options rarely provide the required capacities. Mechanical designers frequently use a heavy duty Electric Hydraulic Crawler Track foundation as the underlying mobile platform for these unique machines. This choice provides a rugged base capable of supporting massive structural loads while ensuring smooth, precise control across uncompacted soils, rocky paths, and challenging industrial sites worldwide.
The overall work efficiency and service life of a heavy duty crawler machine depend heavily on choosing the right track drive and keeping up with a strict preventative maintenance program. By combining multi stage planetary gear reduction, high capacity tapered roller bearings, and premium mechanical face seals, these units deliver the high torque and field reliability needed for the world's toughest industrial tasks. As modern machinery continues to transition toward hybrid power systems and autonomous operations, the need for highly efficient, durable, and low maintenance track drives remains a top priority for engineering teams everywhere.
To help equipment managers maximize machinery uptime and avoid expensive, unexpected component breakdowns in the field, the table below provides a comprehensive preventative maintenance schedule for heavy duty track drives:
Maintenance Frequency | Target Inspection Area | Required Engineering Action and Protocol |
Daily Operational Shift Check | Mechanical Face Floating Seals | Examine the rear area of the sprocket hub for visible gear oil leaks or heavy dirt buildup that could scratch the sealing surfaces. |
Every 250 Operating Hours | Gearbox Oil Level Inspection | Rotate the drive hub until the check plug is level, remove the plug, and verify that the oil reaches the lower edge of the hole; top off if needed. |
Every 1000 Operating Hours | Complete Gearbox Oil Flush | Drain the old gear oil completely while the unit is warm, flush the internal gears to remove microscopic wear debris, and refill with fresh high grade oil. |
Every 1500 Operating Hours | Mounting Bolt Torque Verification | Use a calibrated torque wrench to check all main housing bolts and sprocket mounting fasteners, ensuring they meet exact factory specifications. |
Every 3000 Operating Hours | Internal Component Inspection | Check internal gear backlash and play in the main bearings to ensure the unit stays within safe factory tolerance limits. |
Investing in a well engineered track drive system significantly cuts down on unexpected field breakdowns and maximizes the daily work output of heavy machinery. For new product engineering or updating existing fleet equipment, choosing an integrated Electric Hydraulic Crawler Track system provides the structural strength, high torque output, and reliable environmental sealing needed to keep heavy industrial machines working productively in any environment across the globe.
