The rubber crawler chassis represents an innovative mechanical walking system that integrates flexible rubber tracks, structural steel frames, and advanced drive drive systems to deliver high flotation, low ground pressure, and exceptional traction across various terrains. The rubber crawler chassis is a modern mechanical walking system that replaces conventional wheels or steel tracks with reinforced rubber belts to distribute vehicle weight evenly, reduce ground pressure, minimize surface destruction, and maximize multi-terrain maneuverability for industrial, agricultural, and specialized machinery. By synthesizing elastomeric materials with rugged mechanical engineering, this system enables heavy equipment to traverse mud, sand, swamps, and paved roads efficiently without sacrificing speed or structural stability.
Understanding the deep engineering principles, practical design layouts, and specific industry applications of these chassis systems is vital for B2B procurement managers, technical directors, and original equipment manufacturers (OEMs). This comprehensive article explores the structural anatomy, performance advantages, and market deployment of rubber track technology. By exploring technical frameworks, selection criteria, and strategic integration options, industrial purchasers can acquire the exact insights needed to optimize their equipment fleets and enhance operational productivity.
Section | Summary |
Technical characteristics of rubber crawler chassis | This section outlines the engineering components, low ground pressure properties, structural layout, and driving mechanics of advanced rubber track assemblies. |
Main application areas of Rubber Track Chassis | This section analyzes the primary industries utilizing rubber tracks, highlighting agricultural, construction, mining, and customized utility equipment. |
Selection and maintenance of rubber track chassis | This section provides practical guidelines for selecting technical specifications and executing maintenance protocols to maximize operational lifespan. |

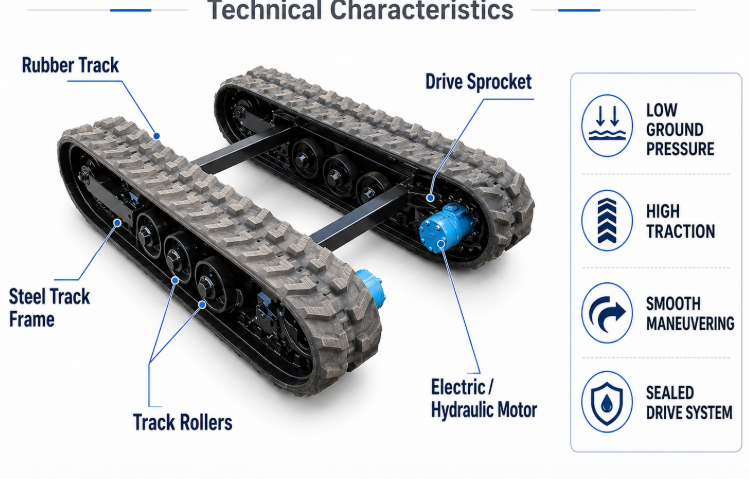

The technical characteristics of the rubber crawler chassis center on its unique structural elasticity, high-strength reinforcement, exceptional weight distribution, and integrated hydraulic propulsion, which collectively maximize traction while minimizing surface pressure.
The foundation of a high-performance track assembly rests upon material science and precision structural fabrication. Unlike rigid steel tracks, a rubber chassis utilizes a continuous elastomeric belt reinforced with internal high-tensile steel cords and forged steel teeth. This combination ensures that the track resists stretching under high torque loads while maintaining the flexibility needed to conform to uneven terrain. The chassis framework itself is constructed from heavy-duty structural steel, supporting a system of drive sprockets, guide idlers, and track rollers.

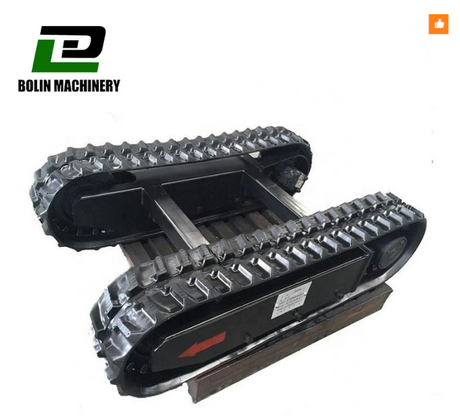

For advanced industrial applications requiring precise control and independent power distribution, incorporating an optimized Electric Hydraulic Crawler Track allows the machine to achieve infinitely variable speed adjustments and high-torque maneuvers. The integration of dual-displacement hydraulic motors directly into the track planetary gearboxes eliminates vulnerable external linkages, creating a compact and fully sealed drive system that impervious to water, mud, and abrasive debris.
The core engineering objective of a rubber track chassis is to maximize the ground contact area, thereby lowering the overall ground pressure exerted by the machinery. While a standard wheeled vehicle concentrates its entire mass onto small tire contact patches, a crawler track spreads that identical mass across the entire length and width of the track assembly. This prevents heavy machinery from sinking into low-capacity soils, mud, or agricultural crop fields, maintaining high mobility where wheeled vehicles would become immobilized.
The mathematical relationship governing this behavior demonstrates that increasing the track contact length directly decreases the ground pressure profile. This reduction in pressure prevents severe soil compaction, which is critical for agricultural productivity, and protects sub-surface infrastructure in urban construction zones. The following detailed analysis contrasts the performance profiles of rubber tracks, steel tracks, and traditional heavy-duty tires:
Performance Metric | Rubber Crawler Track | Traditional Steel Track | Heavy-Duty Pneumatic Tires |
Ground Pressure Profile | Very Low (15 to 35 kPa) | Medium (40 to 70 kPa) | High (200 to 400 kPa) |
Surface Damage Risk | Minimal (Non-destructive) | High (Destructive to asphalt/soil) | Medium (Rutting and compaction) |
Maximum Travel Speed | High (Up to 15 km/h) | Low (Up to 6 km/h) | Very High (Up to 40+ km/h) |
Acoustic Noise Generation | Extremely Low | High Metallic Noise | Low Noise |
Shock and Vibration Absorption | Excellent Elastic Damping | Rigid (Transmits vibration) | Good Pneumatic Damping |
Initial Procurement Cost | Moderate | High | Lower |
The motion of a rubber crawler chassis relies on the positive engagement between the drive sprocket and the forged steel inserts embedded within the track matrix. As the internal hydraulic or electric motor rotates the drive sprocket, the sprocket teeth engage the track lugs, pulling the continuous belt along the roller path. The front idler wheel maintains appropriate track tension through a heavy-duty recoil spring or a hydraulic grease cylinder tensioning system, preventing track derailment during high-speed turns or reverse travel.
The walking system absorbs high-frequency vibrations caused by rocky terrain through the elastic deformation of the rubber compound and the articulated movement of the track rollers. This damping effect reduces structural fatigue on the upper machine mainframe, extends the operating life of sensitive electronic control units, and enhances operator comfort during prolonged working shifts.
The main application areas of the rubber track chassis span across heavy industries such as modern agriculture, urban construction, resource mining, and specialized emergency response, where high-flotation mobility is critical.
Modern agricultural production demands large-scale machinery that can operate efficiently regardless of weather-induced soil conditions. Heavy combine harvesters, seeders, and fertilizer applicators equipped with traditional wheels can cause deep rutting and severe soil compaction, which destroys soil structure and reduces crop yields. Integrating a rubber crawler chassis allows these large machines to navigate waterlogged rice paddies, soft peatlands, and undulating terrain with minimal soil disturbance.
The high-flotation characteristics ensure that field operations can proceed immediately after heavy rainfall, preventing costly delays during tight planting or harvesting windows. Furthermore, the exceptional traction provided by the extended track footprint allows agricultural tractors to pull heavier implements with significantly reduced wheel slip, optimizing fuel efficiency and increasing daily acreage coverage.
In urban construction environments, machinery must frequently transition between unfinished earthen foundations and finished concrete or asphalt roadways. Rigid steel tracks inflict severe surface damage on paved roads, necessitating expensive protective matting or specialized transport trailers. Rubber tracks solve this problem by providing a non-destructive contact surface that allows mini-excavators, compact track loaders, and drilling rigs to drive directly onto municipal streets without damaging public infrastructure.

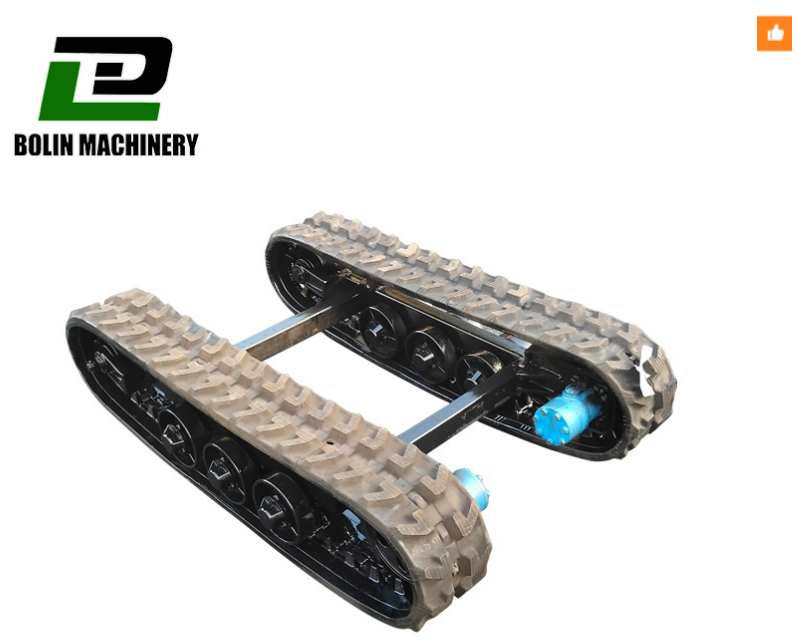

For specialized industrial designs, engineering teams often specify a heavy-duty Electric Hydraulic Crawler Track chassis to serve as the mobile base for compact material handlers and utility lifts. The low acoustic signature of rubber tracks is highly beneficial for municipal projects, allowing construction crews to operate within residential neighborhoods or hospital zones while adhering to strict local noise ordinances.
Resource extraction and geological exploration often occur in extreme environments devoid of developed road networks. Exploration drill rigs, heavy material haulers, and robotic sensing platforms must cross expansive mud flats, shifting sand dunes, and rugged scree slopes. The wide footprint and deep tread patterns of rubber crawler systems provide the high tractive effort needed to climb steep inclines and cross unstable embankments safely.
To illustrate the diverse operational deployment of these systems across different sectors, the following structured breakdown details specific equipment integrations:
Agricultural Sector
Rice Transplanters and Harvesters: Navigating deep, saturated mud paddies without sinking.
Large Grain Chaser Wagons: Carrying high-tonnage payloads across fields without creating deep ruts.
High-Clearance Field Sprayers: Maintaining stable boom platforms over uneven, soft row-crop fields.
Construction and Infrastructure Sector
Compact Track Loaders (CTL): Executing high-torque grading, digging, and material loading operations.
Horizontal Directional Drilling (HDD) Rigs: Anchoring heavy boring equipment securely on unpaved roadsides.
Compact Articulated Boom Lifts: Providing a stable, non-marking base for high-altitude building maintenance.
Special Utility and Emergency Sector
All-Terrain Remote Rescue Vehicles: Traversing landslide debris, flooded wetlands, and snowfields.
Amphibious Environmental Dredges: Walking along shallow riverbanks and marshy coastlines.
Custom Robotic Inspection Platforms: Remote-controlled units for exploring hazardous underground mines.
The selection and maintenance of a rubber track chassis require a precise calculation of machine payload capacities, structural dimensions, and operating environments, paired with systematic track tensioning and undercarriage cleaning protocols.
Selecting the appropriate chassis requires a thorough engineering evaluation of the machine's operational parameters. The primary criteria include the maximum gross vehicle weight (GVW), the desired travel speed range, the terrain slope requirements, and the environmental temperature limits. Specifying an under-engineered track assembly leads to rapid rubber degradation, internal steel cord breakage, and premature hydraulic motor failure under heavy duty cycles.
Engineering teams must calculate the ground contact length and track width required to achieve target flotation values. For complex integration projects involving automated guidance or remote-controlled operations, sourcing a fully integrated Electric Hydraulic Crawler Track platform ensures that the hydraulic flow rates, valve configurations, and electrical control signals match the main machine's power distribution unit perfectly, reducing overall design cycles and troubleshooting costs.
The operational lifespan of a rubber track system depends heavily on regular inspection and preventative maintenance. Unlike steel track links that require constant oil lubrication, rubber tracks require keeping the undercarriage components clean and ensuring the track tension is adjusted within the manufacturer's specified tolerances. Loose tracks can experience sprocket jumping or complete derailment during tight turns, while over-tensioned tracks place excessive stress on the drive motors, idler bearings, and internal steel reinforcement cords.
Operating habits also significantly impact track longevity. Operators should avoid sharp, high-speed pivot turns on abrasive concrete surfaces and minimize direct exposure to harsh chemical contaminants, petroleum products, and jagged rocky debris. The following maintenance workflow outlines the mandatory inspection intervals and actions required to ensure reliable, long-term operation of the track assembly:
Inspection Interval | Component to Evaluate | Maintenance Actions and Diagnostic Criteria |
Daily Pre-Shift | Track Tension Profile | Check for track sag; adjust the grease cylinder tensioner if sag exceeds factory limits. |
Daily Pre-Shift | Undercarriage Cleaning | Clear packed mud, rocks, and ice from the rollers and sprockets to prevent mechanical jamming. |
Weekly | Rubber Track Condition | Inspect for deep cuts exposing the internal steel cords, missing lugs, or edge fraying. |
Weekly | Roller and Idler Bearings | Check for oil leaks around the lifetime-lubricated dual-cone seals; ensure rollers rotate freely. |
Monthly | Drive Sprocket Wear | Check the profile of the sprocket teeth; replace if teeth become sharp or hooked to prevent track wear. |
Every 250 Hours | Hydraulic Drive System | Inspect hydraulic hoses for abrasion; check planetary gearbox oil levels and top off if necessary. |
Bi-Annually | Alignment Verification | Check the tracking alignment between the drive sprocket and front idler to prevent uneven edge wear. |
When a rubber chassis operates in severe environments, regular inspections help identify wear patterns before they cause catastrophic field failures. If an operator notes tracking misalignment, where the machine pulls to one side during straight-line travel, the technical team must verify the hydraulic pressure balance across both independent drive circuits and ensure the front idler wheels are properly aligned.

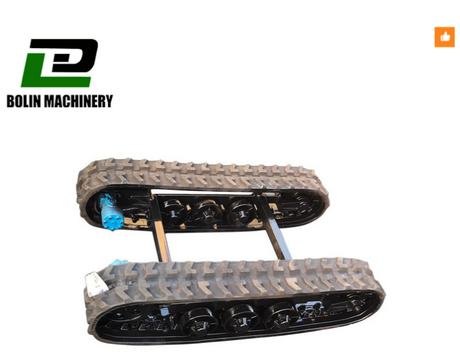

When configuring equipment configurations for extreme duties, implementing a robust Electric Hydraulic Crawler Track architecture with built-in pressure monitoring ports enables technicians to quickly isolate whether a performance drop stems from mechanical track resistance or a hydraulic efficiency loss within the drive motor. Tracks must be scheduled for replacement when the tread lug height decreases below 20 percent of its original dimension, or if internal steel cords are exposed, compromising the structural integrity of the rubber belt.
The rubber crawler chassis stands as a transformative innovation in modern mechanical walking systems, successfully bridge the gap between high-speed wheeled mobility and heavy-duty steel track durability. By utilizing advanced elastomeric compounds and integrating high-torque hydraulic drive systems, this technology provides industrial machinery with multi-terrain capabilities while protecting delicate topsoils and municipal pavements.
For original equipment manufacturers and industrial enterprises seeking to upgrade their product line or fleet capabilities, selecting a high-quality track platform is a foundational requirement for market competitiveness. Investing in precision-engineered assemblies ensures exceptional uptime, lower total cost of ownership, and outstanding performance across demanding industrial landscapes. As automation and electrification continue to reshape the heavy machinery industry, the rubber track chassis will remain a core component of mobile equipment design worldwide.
